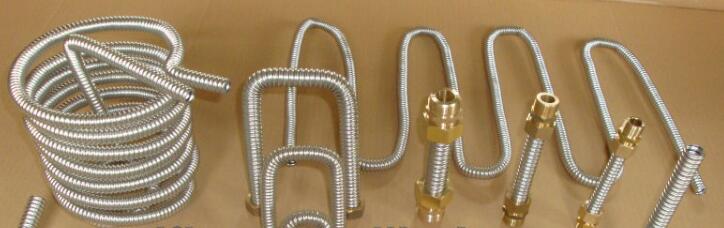

304 stainless steel bellows Corrugated Pipe Water Heater Metal Hoses 1/2" High Pressure Explosion-proof Connecting Pipe
Description:
Flexible stainless steel pipe is made by corrugating stainless steel thin wall pipe. have good flexibility ,high strength, heat resistance and pressure tightness. They can be used to convey most kinds of fluid those are gaseous, such as gas, air, steam, etc. and liquid such as water, oils, chemicals,etc.,which have functions to absorb reciprocated motion, thermal expansion, vibration, and misalignment of piping.
Specification:
1) Size: 1/2" metal Stainless steel corrugated flexible pipe/tube/hose
2) PN:0.7MPa
3) Comply Standard: CE EN14800;2007
4) Hose material: AIAI304
5) Wall Thickness: 0.18mm
6) Working Pressure: 6 Bar
Burst Pressure: 100 Bar
7) Working Tmperature: -40_120°c
8) Bend Times: 200
9) Length: 150_2000mm customized
10) Connection: TIG
11) Ripple: Dense annularly corrugation
technical parameters
| DN(mm) | Fitting Size(In) | φA(mm) Outside Diameter | φD(mm) Inside Diameter | (mm) Tolerance |
| DN10 | 1/2 | Φ12.0 | Φ8.0 | ±0.2 |
| DN11 | 1/2 | Φ13.5 | Φ10.0 | ±0.2 |
| 1/2 | Φ16.0 | Φ10.5 | ±0.2 |
| DN12 | 1/2 | Φ17.0 | Φ12.0 | ±0.2 |
| DN13 | 1/2 | Φ18.0 | Φ12.5 | ±0.2 |
| DN16 | 1/2 | Φ21.0 | Φ16.0 | ±0.2 |
| DN20 | 3/4 | Φ26.0 | Φ19.0 | ±0.3 |
| DN25 | 1 | Φ32.0 | Φ25.0 | ±0.3 |
| DN32 | 11/4 | Φ42.0 | Φ32.0 | ±0.3 |
| DN40 | 11/2 | Φ50.0 | Φ40.0 | ±0.5 |
| DN50 | 2 | Φ61.0 | Φ50.0 | ±0.5 |
Usage:
It can be used to convey most kinds of fluid those are gaseous, such as nature gas, air, steam, etc. and liquid such as water, oils, chemicals, etc.,which have functions to absorb reciprocated motion, thermal expansion, vibration, and misalignment of piping.
Packing and delivery:
1. 5PCS or 10PCS in one PP bag.
2.Three PP bag in one carton.
3.60-120 cartons on one pallet.
Anyway according to your size and your request.
